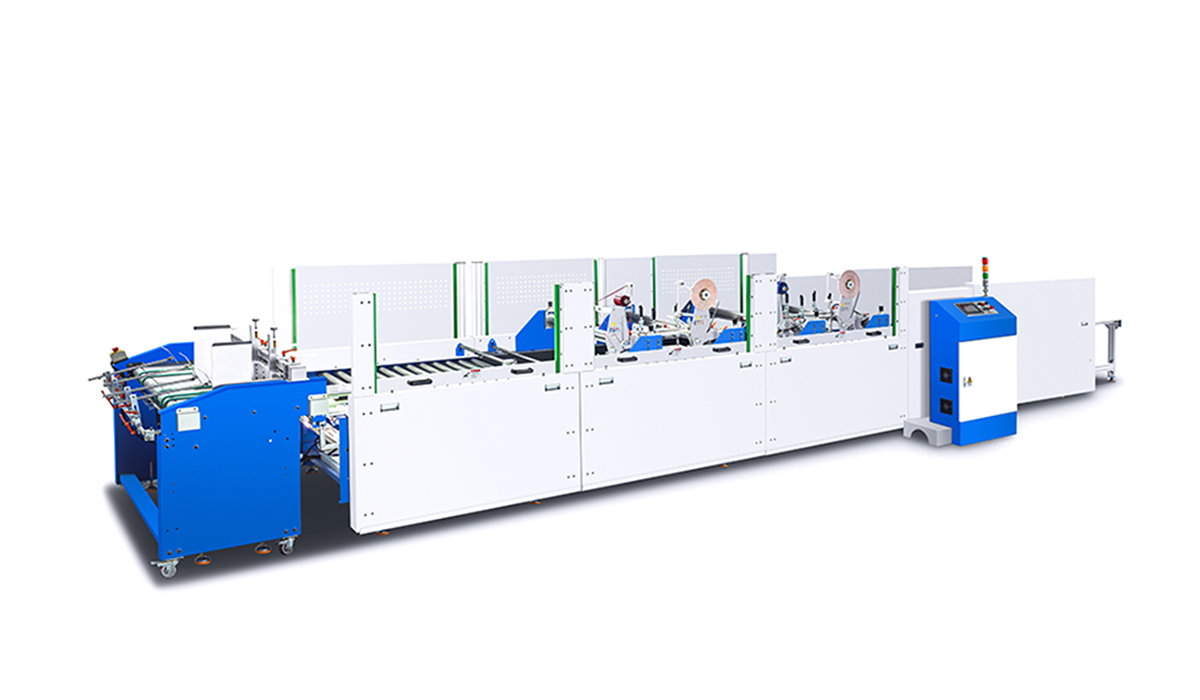

AUTOMATIC MULTI-FUNCTION DOUBLE SIDE TAPE APPLICATOR

The multi-functional double side tape applicator is designed according to European standards, safe and reliable, easy to operate, modular unit design. For large format pakcaging boxes, not only can meet the current production needs, but also meet your future business challenges.

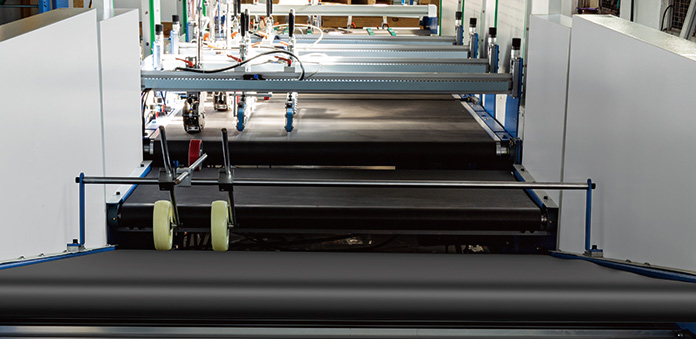

Automatic paper feeder
Independently adjust the paper feeding belt device, which is very convenient for adjusting the belt. Equipped with an independent vibration motor, it fully improves the paper feeding quality; the paper feeding knife and left and right baffles can move up and down as a whole, shortening the adjustment and sheet change time.

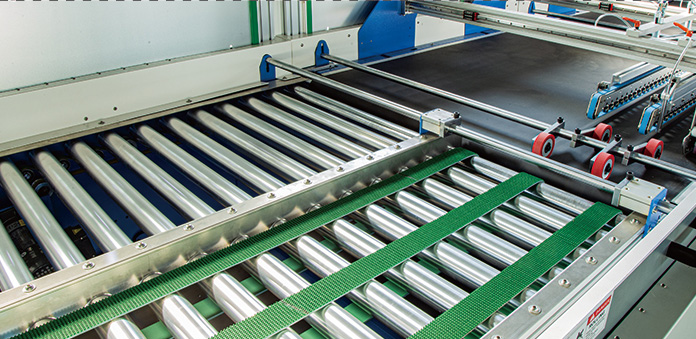

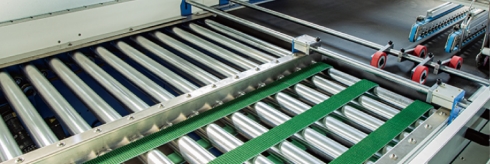

Pull rule correction
Position the unit separately, use one side of the paper box for paper output as a reference to ensure accurate glue application of the product. The four-board design of this part makes paper conveying smoother; the angles of the upper pressing bird and the lower moving plate can be adjusted according to product requirements to ensure the accuracy of the product. Separate clicking transmission makes the machine more stable.

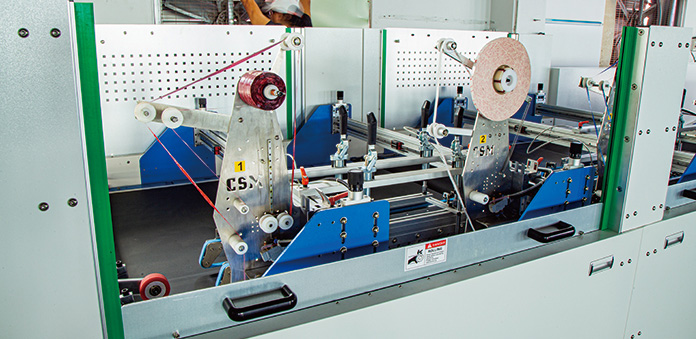

Glue Sticking Host Machine
Brand - new design concept, lengthened and humanized design fully ensure the efficient glue application of the product.

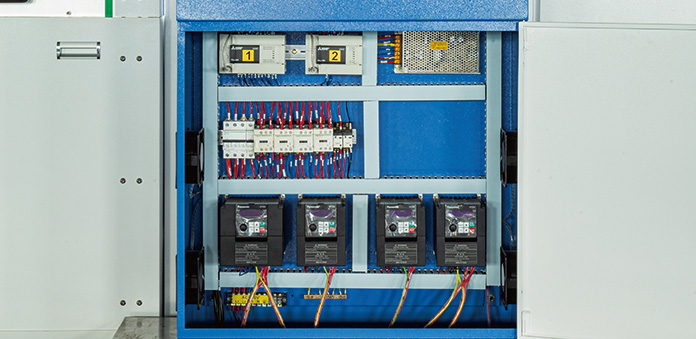

Electrical control
The latest PLC programmable controller system is adopted, equipped with international brand electrical control components from Europe and Japan. The circuit control program is simple, the operation is stable, the failure rate is low, and the maintenance is convenient.

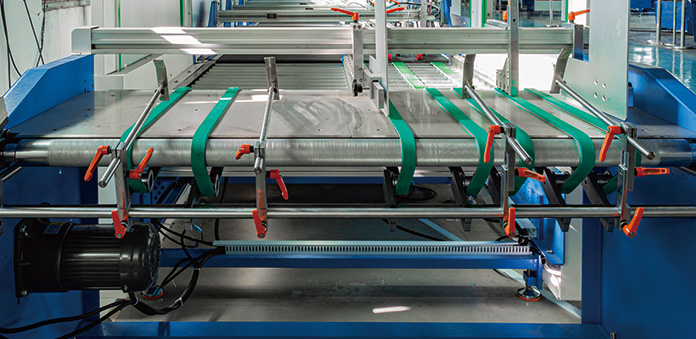

Transport
Equipped with two sets of different conveyors, select the conveyor that changes the paper feeding direction. The paper collection direction can be changed according to different types of products. Layered paper collection and climbing paper collection machines reduce the fatigue of the waist of personnel.

AUTOMATIC MULTI-FUNCTION DOUBLE SIDE TAPE APPLICATOR Product Features:

AUTOMATIC MULTI-FUNCTION DOUBLE SIDE TAPE APPLICATOR Detailed parameters：

Model	CS -1600	CS -1800	CS-2200	CS-2400
Material：	Over 300 g/m² cardboard, corrugated board
Open blank：	min. 250mm x 250 mm	min.300 mm x 300 mm	min. 350 mm x 350 mm	min. 400 mm x 400 mm
Open blank：	max.1600mm x1300 mm	max.1800mm x 1600 mm	max.2200 mm x 1600 mm	max.2400 mm x 1600 mm
Working width：	1300 mm	1600 mm	2200mm	2400mm
Conveyor speed：	90m/min
Tape roll width：	5 – 40 mm
Power required：	5 KW(380V AC 3φ 50HZ)	7.5 KW(380V AC 3φ 50HZ)	9.5 KW(380V AC 3φ 50HZ)	11.5 KW(380V AC 3φ 50HZ)
Weight：	Approx. 2500KG	Approx. 3000KG	Approx. 3500KG	Approx. 4000KG
Machine Siz：	930016301200mm(LWH)	1030019301200mm(LWH)	1030024801200mm(LWH)	1030026801200mm(LWH)
