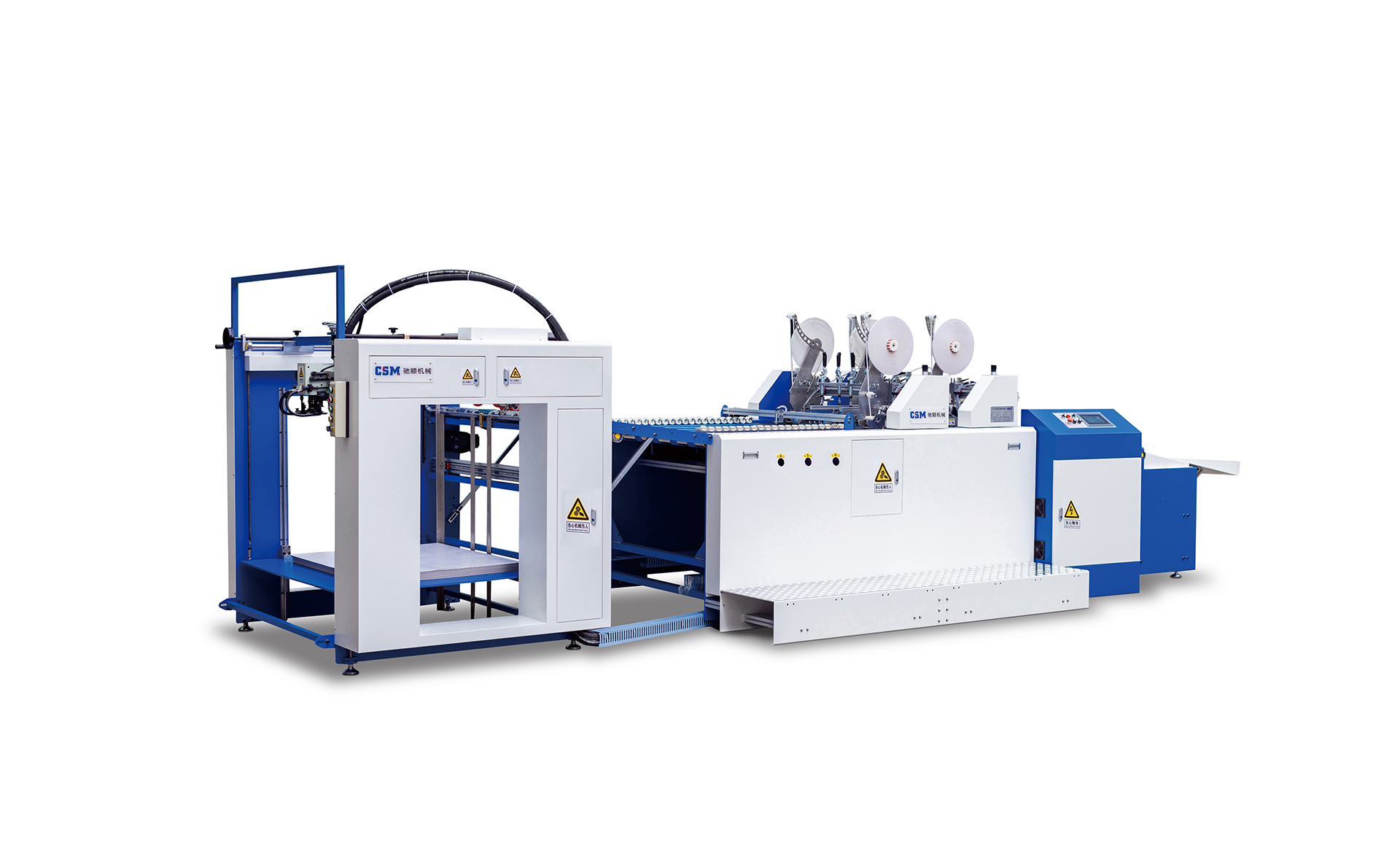

AUTOMATIC THIN PAPER DOUBLE SIDE TAPE APPLICATOR CS-850F

CS series automatic single thin paper applicator is easy in learning and adjusting. They are most for single thin paper double side tape sticking or release paper sticking. Apply to waist seal, clothing label, poster, alcohol and tobacco label, file bag etc.

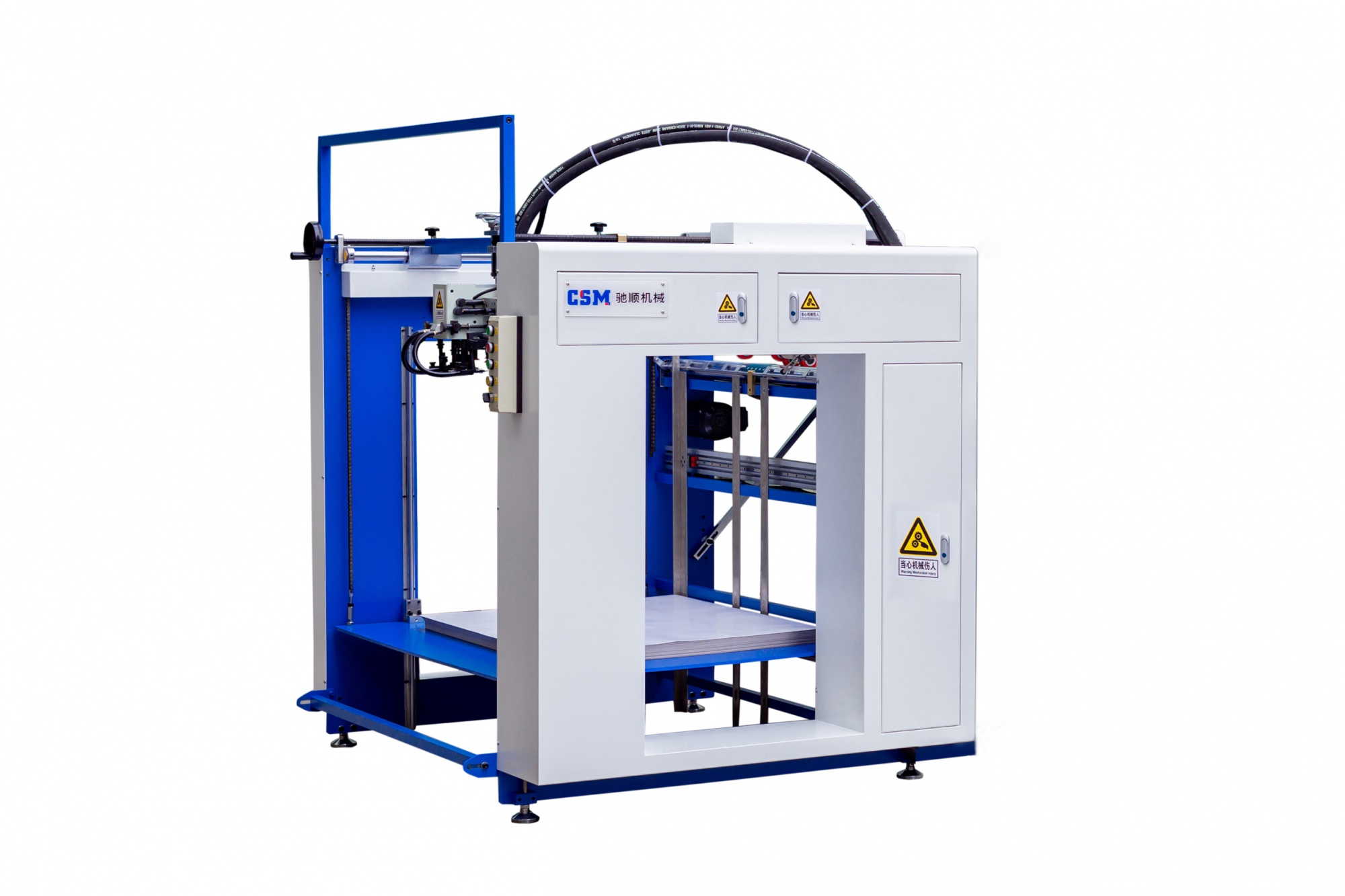

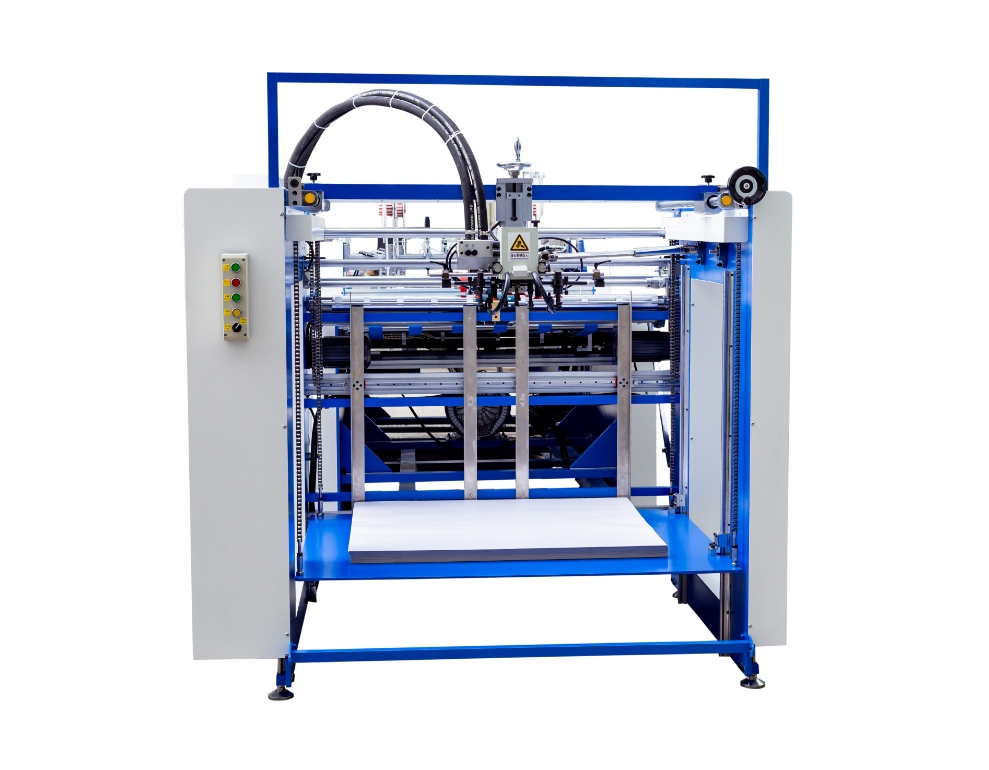

Feeder
The printing machine feeder has 12mm thickness stainless steel and height increasing. It can asjust the paper's space according to the paper's size.
Calibration
Double calibration system increase the correction range and makes it more precision.

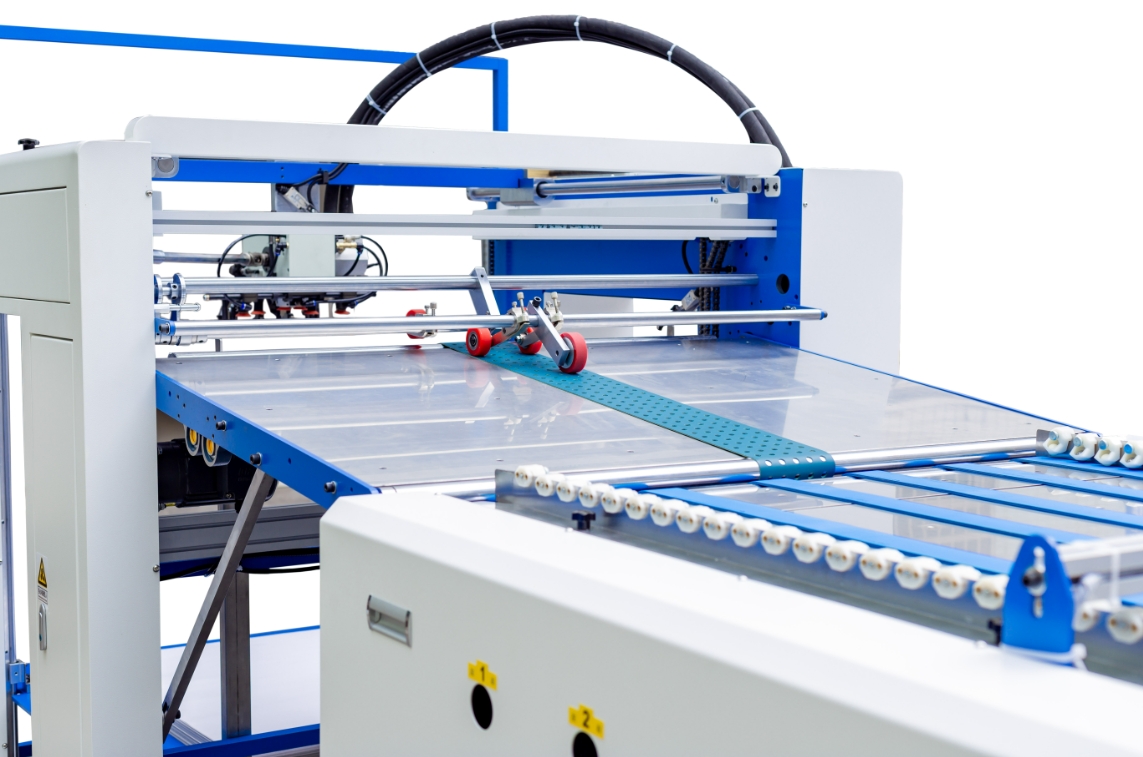

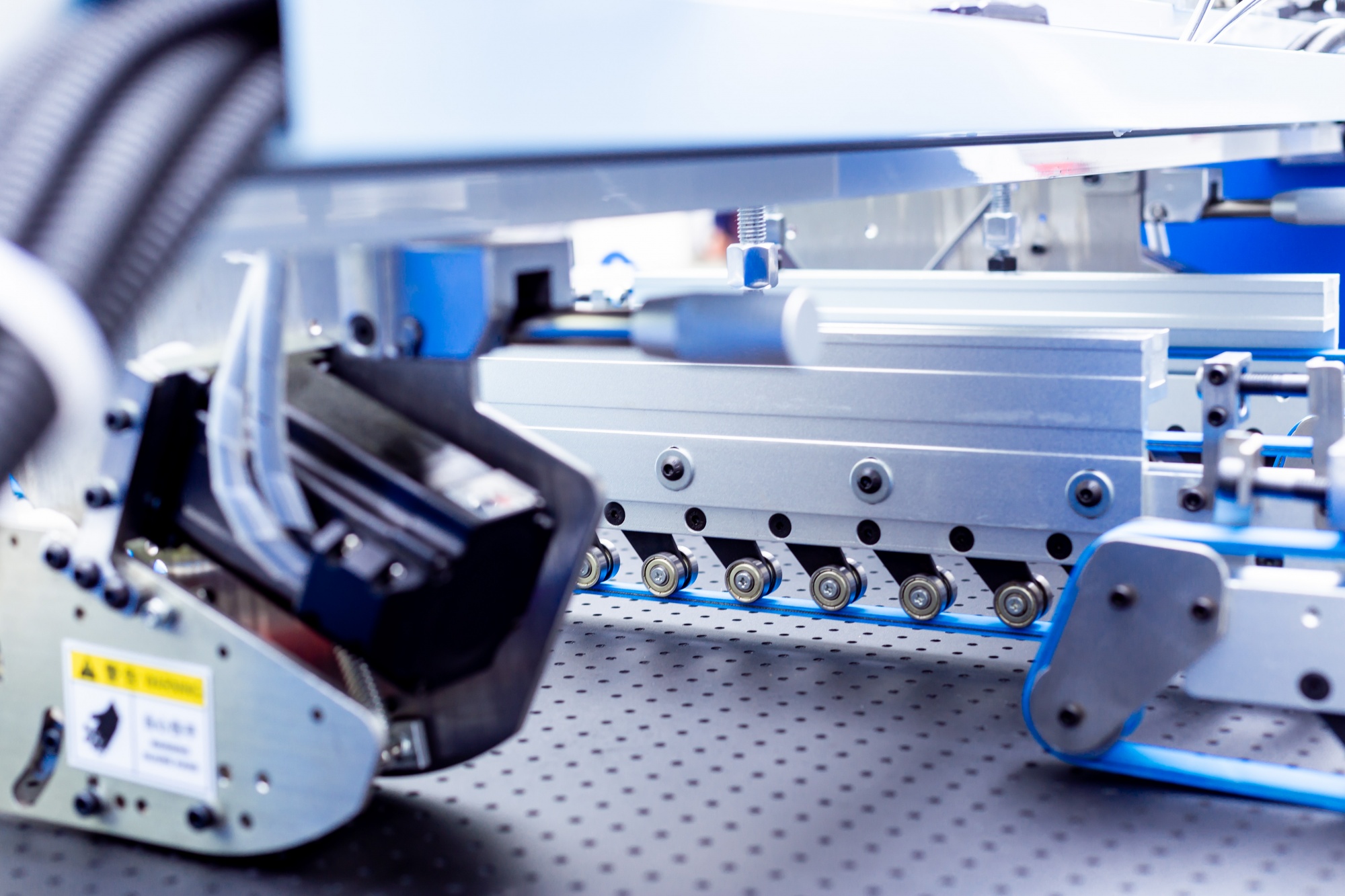

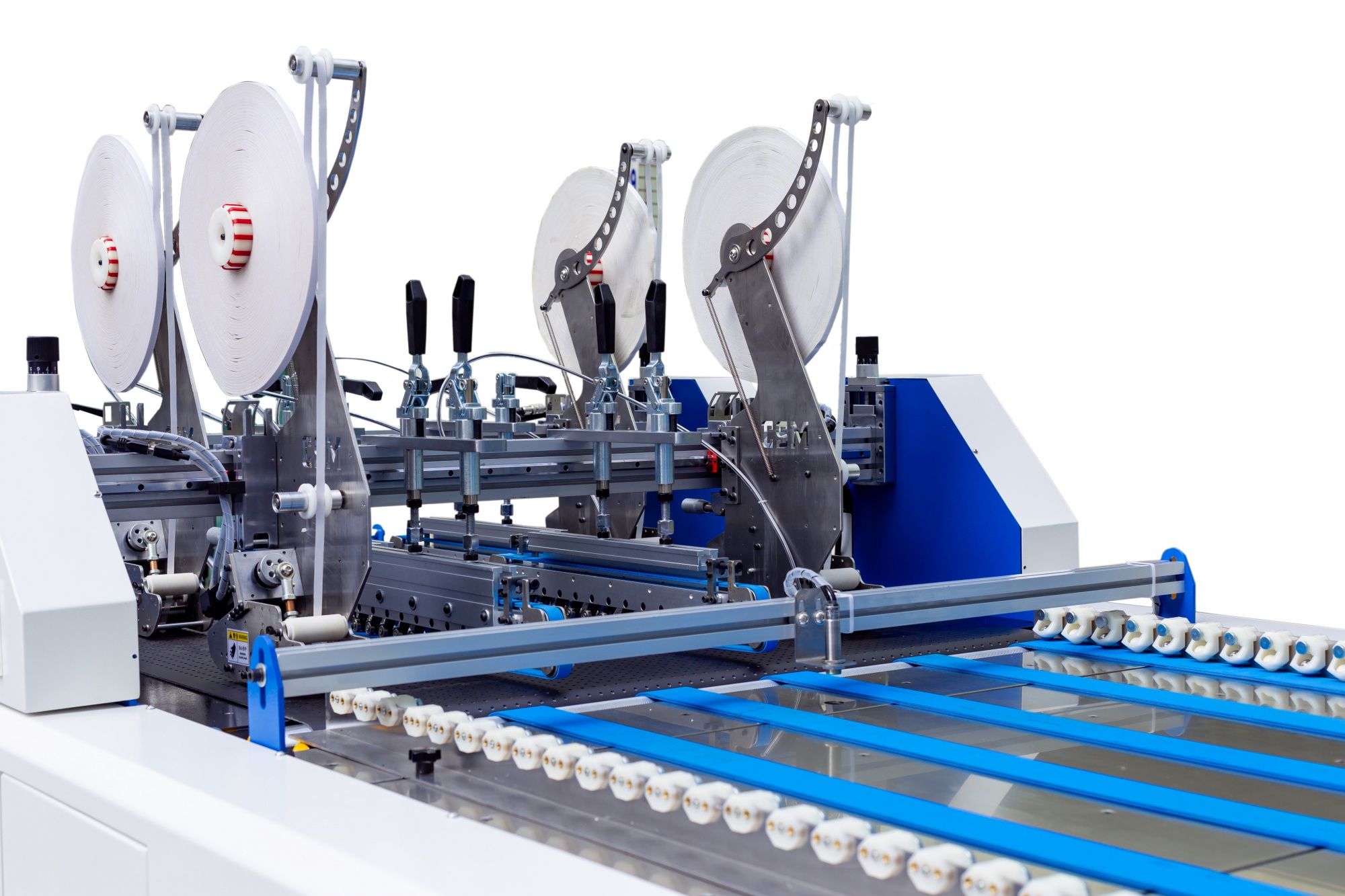

Tape Applicator
The applicator equiped with vacuum platform which keeps the paper smooth. The latest patent-servo tape applicator is available for these machines.

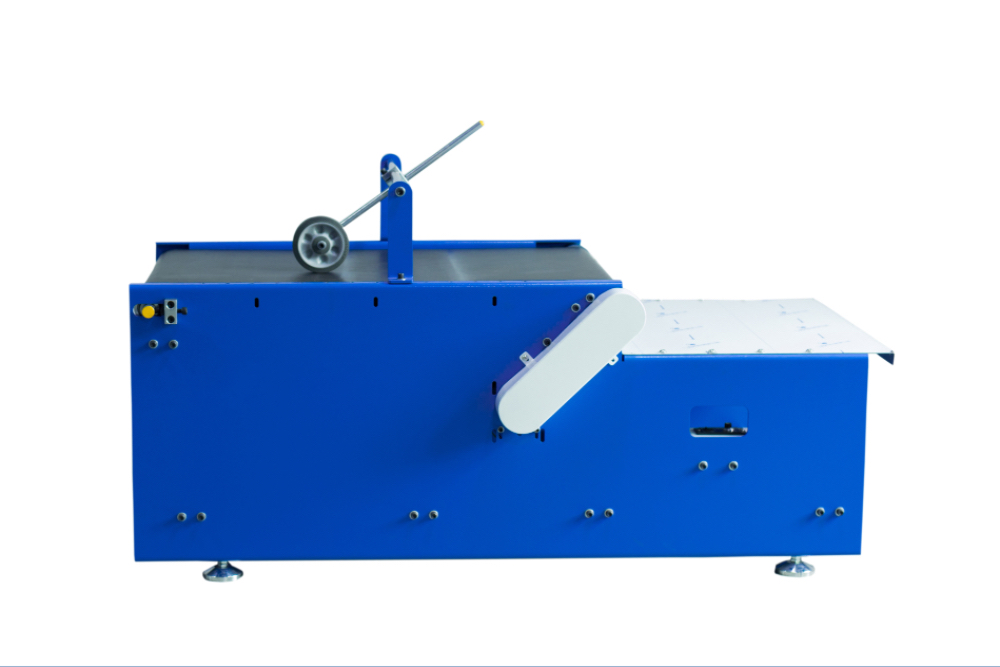

Conveyor
The whole frame makes sure the running platform more stable by anti-seismic and shock absorption.

AUTOMATIC THIN PAPER DOUBLE SIDE TAPE APPLICATOR Product Features:

AUTOMATIC THIN PAPER DOUBLE SIDE TAPE APPLICATOR Product Parameters：

Model	CS-850F	CS-1050F
Material	Over 80 g/m² art paper, cardboard, 3-layers makeup corrugated board
Min paper size	250mm×250mm	300mm×300mm
Max paper size	850mm×850mm	1050mm×1050mm
Work width	850mm	1050mm
Max speed	90m/min	90m/min
Tape width	5-40mm	5-40mm
Total power	6.8KW (380V AC 3φ 50Hz)	8.2KW (380V AC 3φ 50Hz)
Weight	Approx. 1800KG	Approx. 2100KG

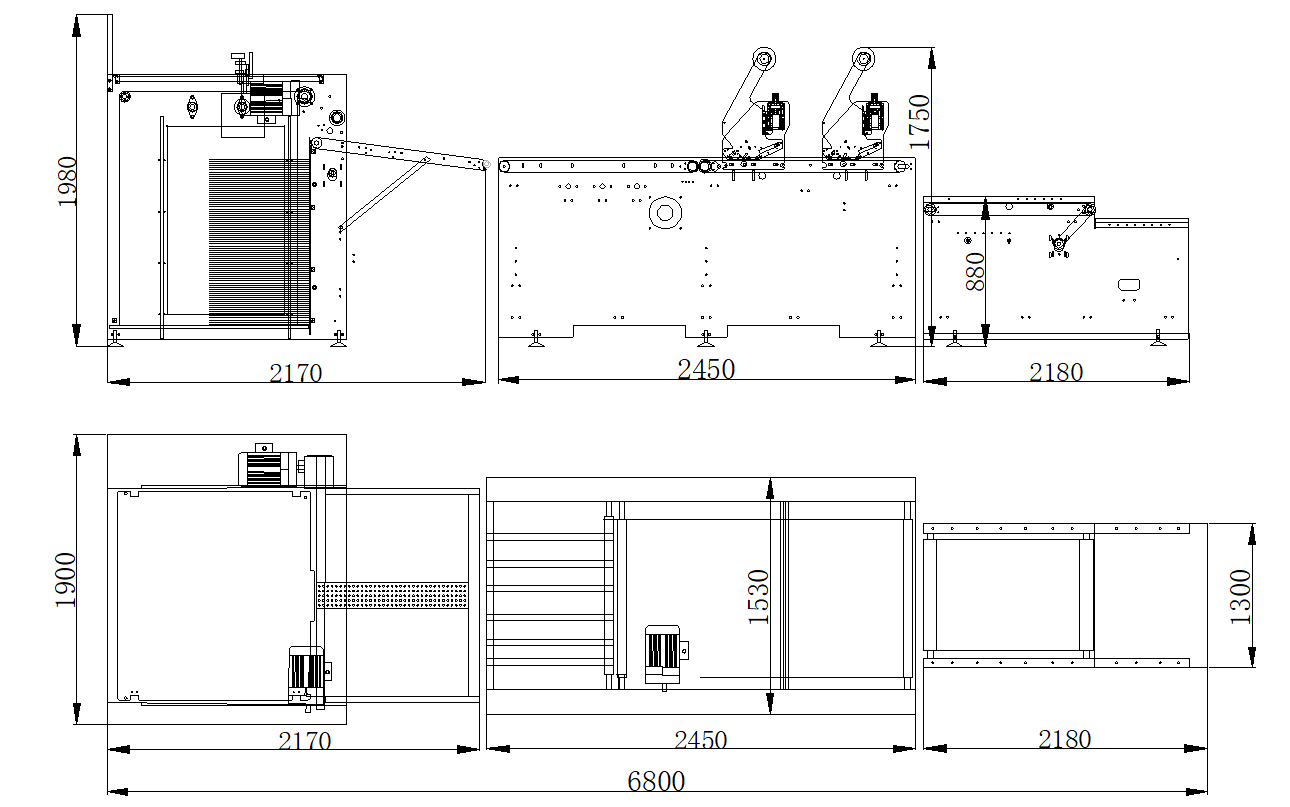

Machine Size	680017001980mm(LWH)	680019001980mm(LWH)
